RDR-873 - 30 W Single-Phase Inverter Using BridgeSwitch Motor Driver
- Single-phase motor
- 30 W continuous inverter output power
- 270 VDC - 365 VDC input
- 0.22 A continuous RMS current

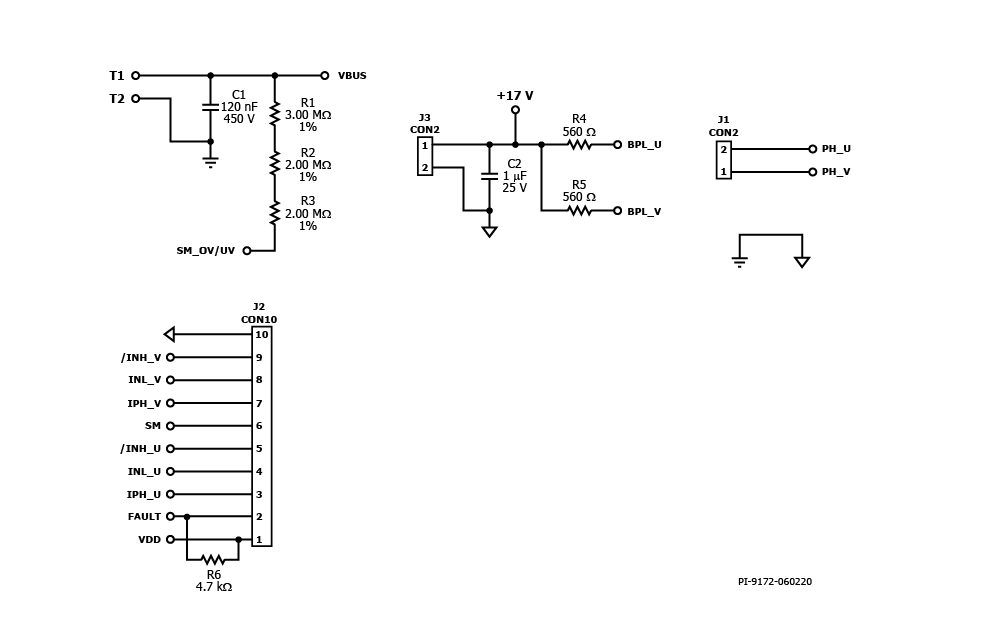

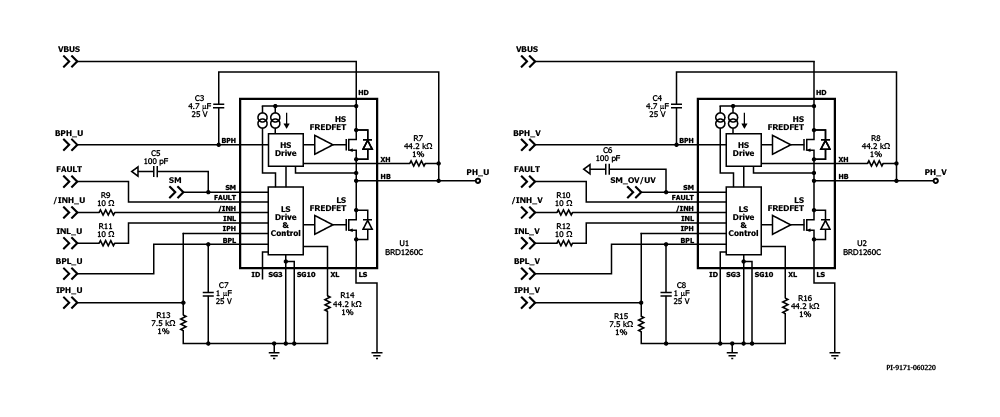

- BridgeSwitch motor driver IC (BRD1260C)
Applications
Specifications
Design Type
Reference Design Reports (RDR)
Vout 1
136.00 V
Vin (min)
270
Vin (max)
365
P (NoLoad)
180.00 mW
Efficiency
94.97%
Number of outputs
1
Output Power
30.00 W
Associated Parts
BRD1260C
Gerber File
rdr-873_gerber.zip
