RDR-866 - 2.5 W Non-Isolated Power Supply with Lossless Generation of AC Zero-Crossing Signal using LinkSwitch-TNZ

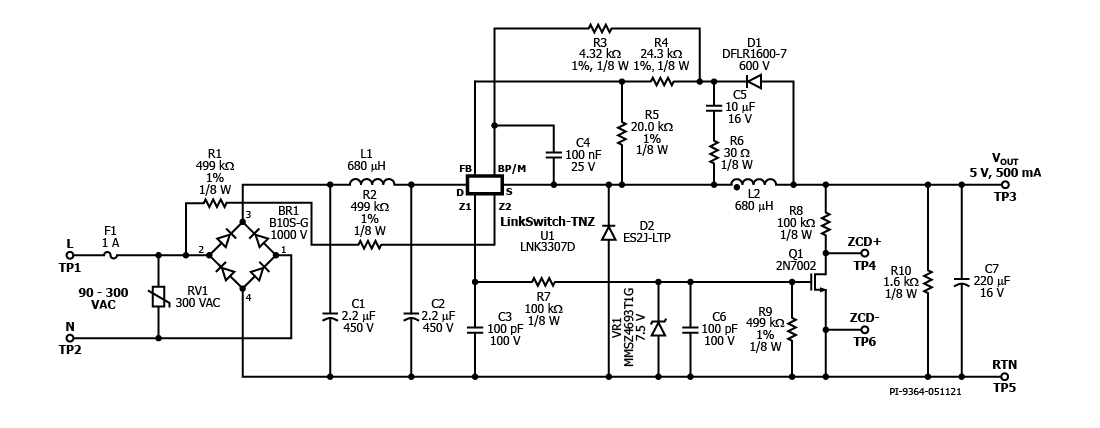

2.5 W Non-Isolated Power Supply with Lossless Generation of AC Zero-Crossing Signal using LinkSwitch-TNZ
Applications
Specifications
Design Type
Reference Design Reports (RDR)
Topology
Buck
Vout 1
5.00 V
Vin (min)
90
Vin (max)
300
P (NoLoad)
50.00 mW
CV/CC
CC
Efficiency
65.00%
Isolated?
No
Number of outputs
1
Output Power
2.50 W
OVP?
Yes
Associated Parts
LNK3307D
Gerber File
rdr-866_gerber.zip
