RDR-839 - 12 W Power Supply for Appliances Using TinySwitch-4

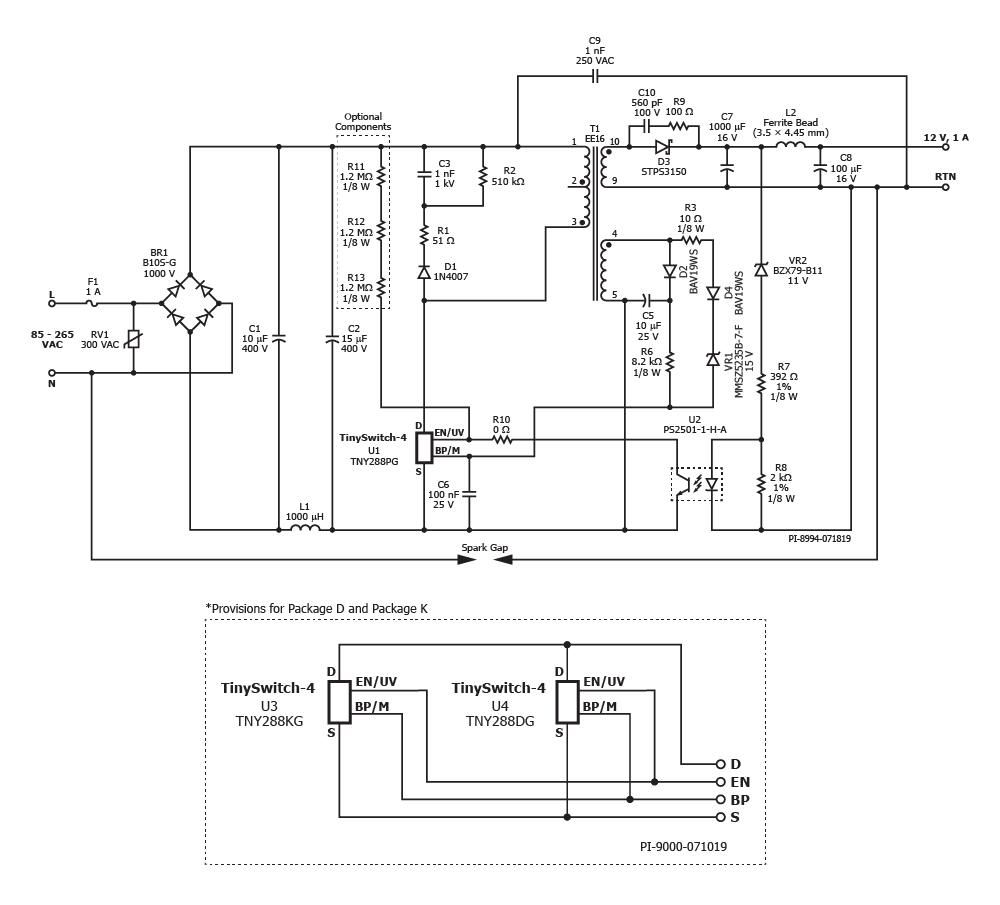

12 W Power Supply for Appliances (85 VAC – 265 VAC input; 12 V, 1 A output) using TinySwitch-4 (TNY288PG)

View PDF Download PDF RDK Available

Notify Me of Updates

Applications

Products

Specifications

Design Type Reference Design Reports (RDR)

Topology Flyback

Vout 1 12.00 V

Vin (min) 85

Vin (max) 265

P (NoLoad) 30.00 mW

CV/CC CV/CC

Efficiency 85.00%

EU ErP Compliant? Yes

Isolated? Yes

Number of outputs 1

Output Power 12.00 W

OVP? Yes

Associated Parts TNY288PG

Gerber File rdr-839_gerber.zip
