RDR-813 - 27 W USB PD 3.0 with 3.3 V-11 V PPS Power Supply Using InnoSwitch3-Pro and VIA Labs VP302 Controller (Single-Board Design)

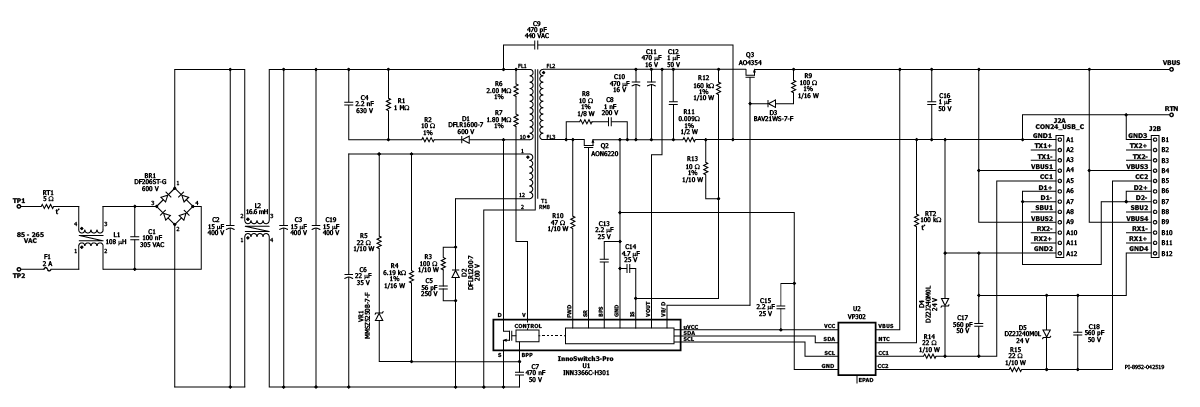

27 W USB PD 3.0 with PPS charger (5 V/3 A; 9 V/3 A; 3.3 V-11 V PPS outputs) using InnoSwitch3-Pro (INN3366C-H301) and VIA Labs VP302 USB PD controller, single-board design

View PDF Download PDF

Notify Me of Updates

Applications

Products

InnoSwitch3-Pro

Specifications

Design Type Reference Design Reports (RDR)

Topology Flyback

Vout (variable) 5.00 V

Vout (variable) 9.00 V

Vout (min) 3.30 V

Vout (max) 11.00 V

Vin (min) 85

Vin (max) 265

Variable Power Output Yes

P (NoLoad) 23.10 mW

CV/CC CV/CC

Efficiency 89.50%

EU ErP Compliant? Yes

Isolated? Yes

Number of outputs 1

Output Power 27.00 W

OVP? Yes

Associated Parts INN3366C-H301

Gerber File rdr-813_gerber.zip
