RDR-737 - 1.44 W Non-Isolated Buck Converter Using LinkSwitch-TN2 900 V

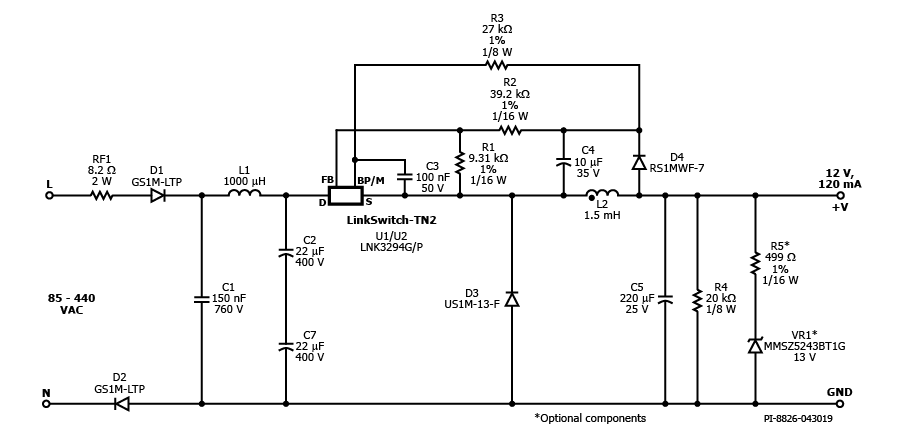

1.44 W Non-Isolated Buck Converter Using LinkSwitch-TN2 900 V (LNK3294G/P)
Applications
Specifications
Design Type
Reference Design Reports (RDR)
Topology
Buck
Vout 1
12.00 V
Vin (min)
85
Vin (max)
440
P (NoLoad)
30.00 mW
CV/CC
CV/CC
Efficiency
70.00%
Isolated?
No
Number of outputs
1
Output Power
1.44 W
OVP?
No
PFC?
No
Associated Parts
LNK3294G/P
Gerber File
rdr-737_gerber.zip
