RDR-736 - 7 W Wide-Range Input, Dual Output, Non-Isolated Flyback Converter Using LinkSwitch-XT2 900 V

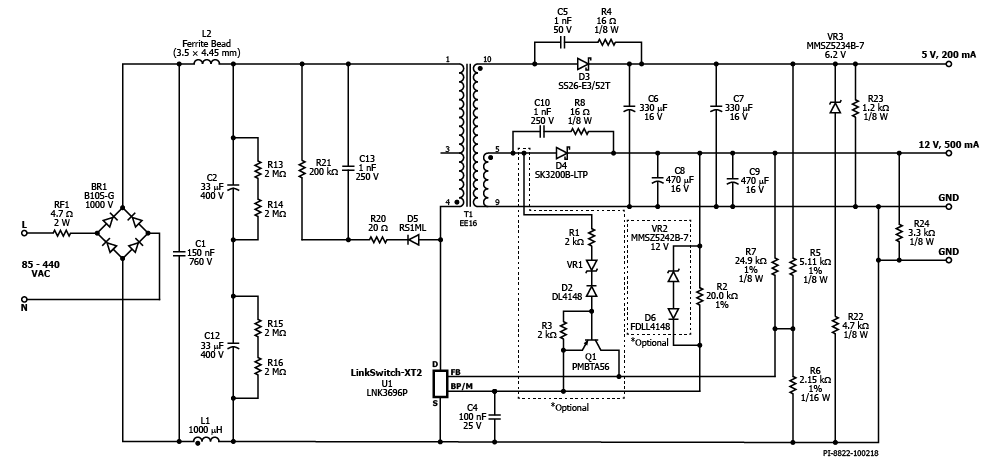

7 W Wide-Range Input, Dual Output, Non-Isolated Flyback Converter Using LinkSwitch-XT2 900 V (LNK3696P)

View PDF Download PDF RDK Available

Notify Me of Updates

Applications

Products

Specifications

Design Type Reference Design Reports (RDR)

Topology Flyback

Vout 1 5.00 V

Vout 2 12.00 V

Vin (min) 85

Vin (max) 440

P (NoLoad) 120.00 mW

CV/CC CV/CC

Efficiency 80.00%

Isolated? No

Number of outputs 2

Output Power 7.00 W

OVP? Yes

Associated Parts LNK3696P

Gerber File rdr-736_gerber.zip
