RDR-734 - 8.4 W Open Frame Power Supply for Appliances Using LinkSwitch-3

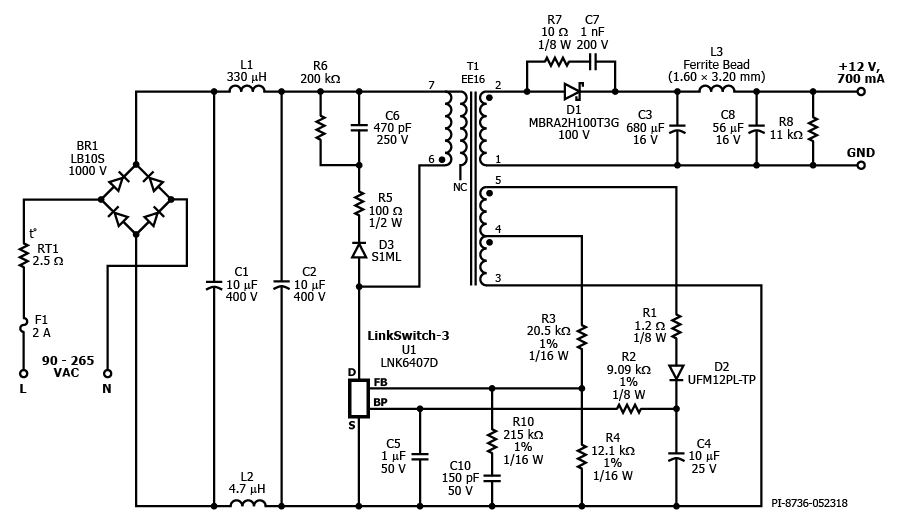

8.4 W (12 V, 0.7 A) Output, Wide Input (90 VAC – 265 VAC) Open Frame Power Supply for Appliances Using LinkSwitch-3 (LNK6407D)

View PDF Download PDF RDK Available

Notify Me of Updates

Applications

Products

Specifications

Design Type Reference Design Reports (RDR)

Topology Flyback

RoHS? Yes

Vout 1 12.00 V

Vin (min) 90

Vin (max) 265

P (NoLoad) 30.00 mW

CV/CC CV/CC

Efficiency 80.93%

EU ErP Compliant? Yes

Isolated? Yes

Number of outputs 1

Output Power 8.40 W

OVP? No

PFC? No

Associated Parts LNK6407D

Gerber File der-734_gerber.zip
