RDR-611 - 10 W Dual Output Power Supply Using InnoSwitch3-EP (725 V Si Switch)

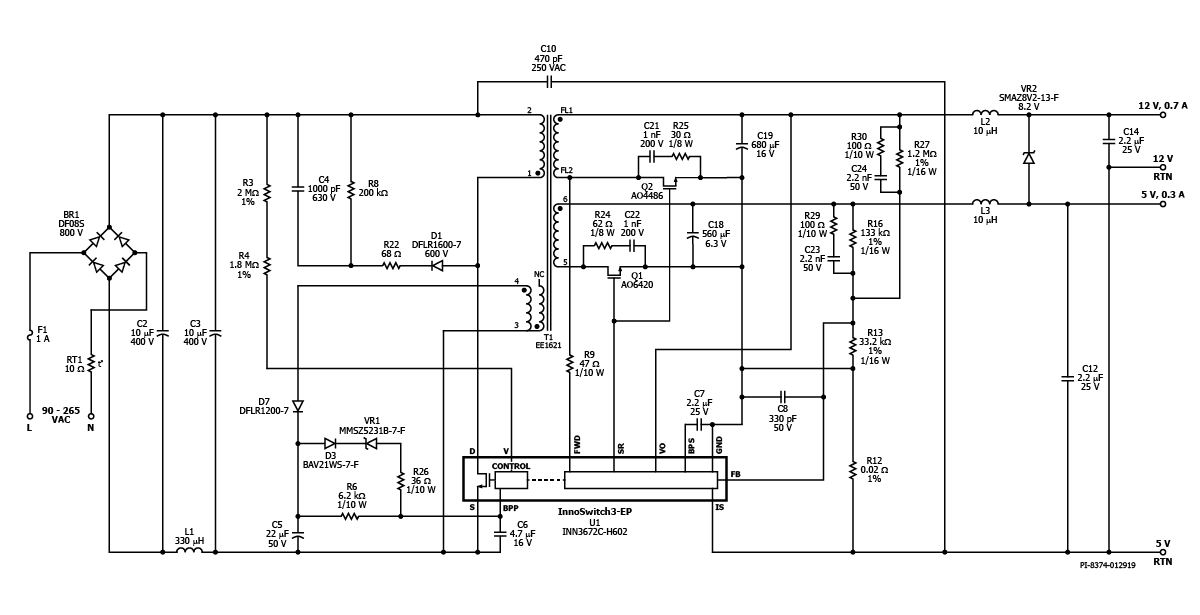

Reference Design Report for a 10 W Dual Output Power Supply Using InnoSwitch3-EP (INN3672C-H602)

View PDF Download PDF RDK Available

Notify Me of Updates

Applications

Products

Specifications

Design Type Reference Design Reports (RDR)

Topology Flyback

Vout 1 5.00 V

Vout 2 12.00 V

Vin (min) 90

Vin (max) 265

P (NoLoad) 24.00 mW

CV/CC CV/CC

Efficiency 85.00%

Isolated? Yes

Number of outputs 2

Output Power 10.00 W

OVP? Yes

PFC? No

Associated Parts INN3672C-H602

Gerber File rd611gerber.zip
