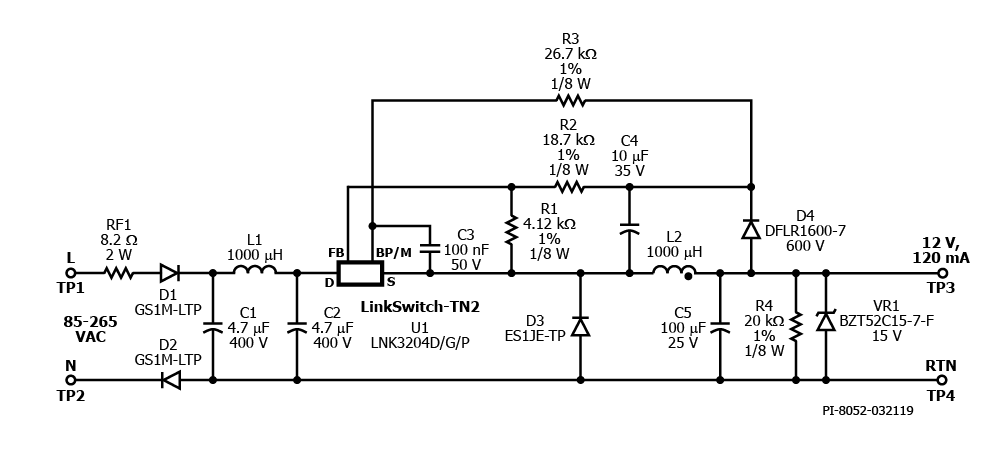

RDR-506 - 1.44 W Non-Isolated Buck Converter using LinkSwitch-TN2
Applications
Specifications
Design Type
Reference Design Reports (RDR)
Topology
Buck
Vout 1
12.00 V
Vin (min)
85
Vin (max)
265
CV/CC
CV
Efficiency
75.00%
Isolated?
No
Number of outputs
1
Output Power
1.44 W
Associated Parts
LNK3204D/P/G
Gerber File
rdr-506_gerber.zip
