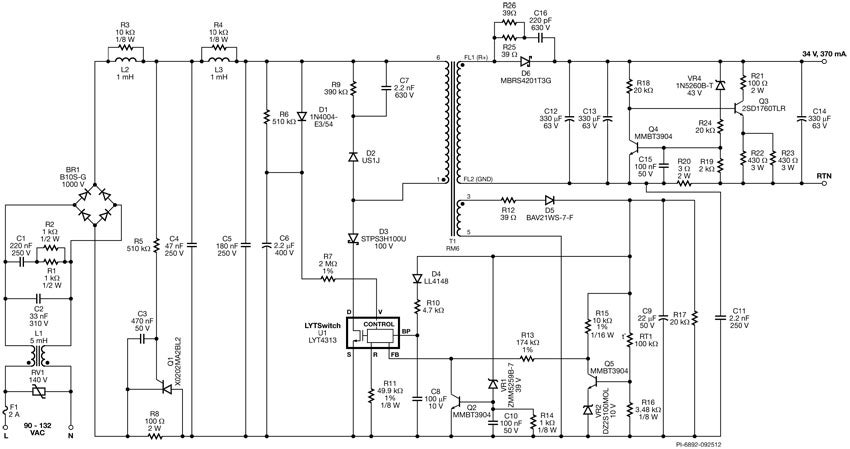

RDR-347 - 12.6 W, TRIAC Dimmable, Isolated Flyback, PFC (>0.97) LED Driver

View PDF Download PDF RDK Available

Notify Me of Updates

Applications

Products

Specifications

Design Type Reference Design Reports (RDR)

Topology Flyback

RoHS? Yes

Vout 1 34.00 V

Vin (min) 90

Vin (max) 132

TRIAC dimmable? Yes

Efficiency 83.00%

Isolated? Yes

Number of outputs 1

Output Power 12.60 W

PFC? Yes

Associated Parts LYT4313

Gerber File rd347gerber.zip
