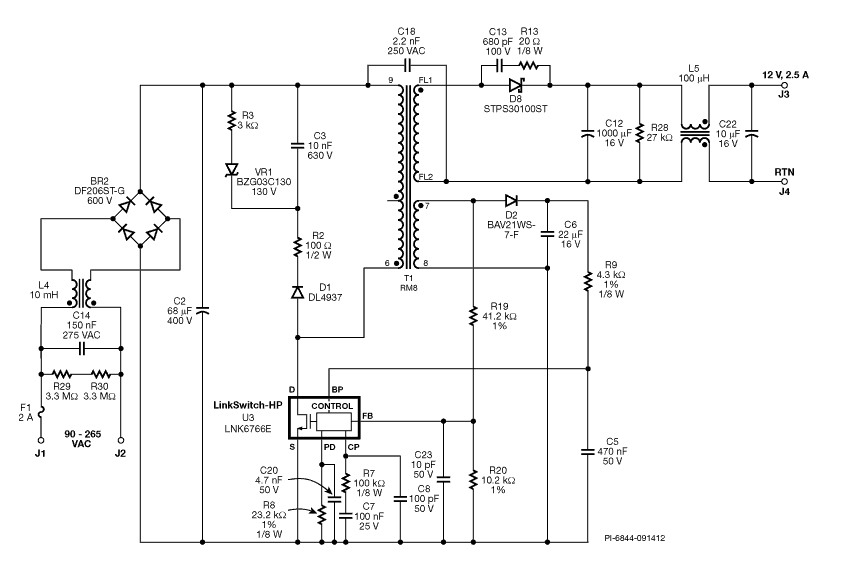

RDR-313 - 30 W Single Output Flyback Converter

View PDF Download PDF

Notify Me of Updates

Applications

Products

Specifications

Design Type Reference Design Reports (RDR)

Topology Flyback

RoHS? Yes

Vout 1 12.00 V

Vin (min) 90

Vin (max) 265

Efficiency 90.00%

Isolated? Yes

Number of outputs 1

Output Power 30.00 W

PFC? Yes

Associated Parts LNK6766E

Gerber File rd313gerber.zip
