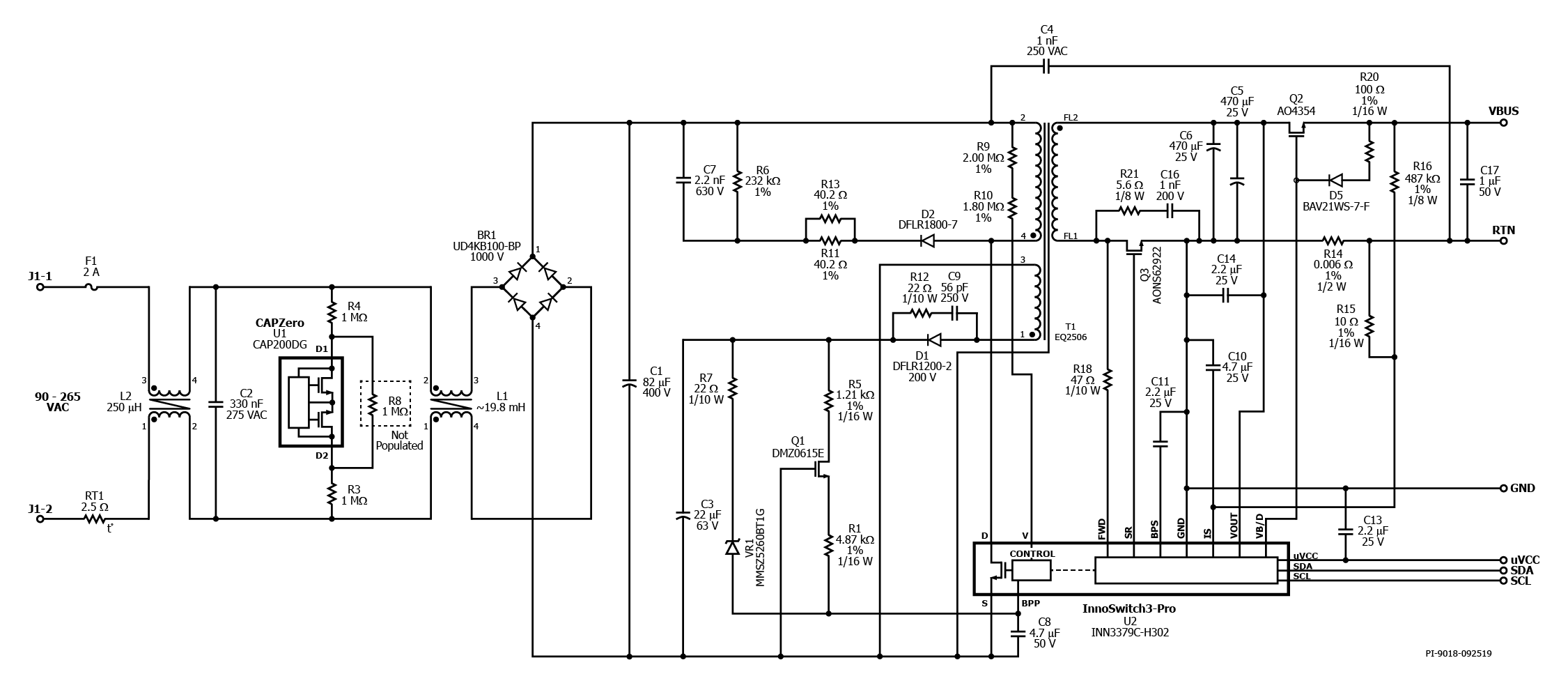

DER-856 - 45 W USB PD 3.0 with 3.3 V-21 V PPS (APDO 5 A for 3.3 V-11 V) Power Supply Using InnoSwitch3-Pro PowiGaN and VIA Labs VP302 Controller

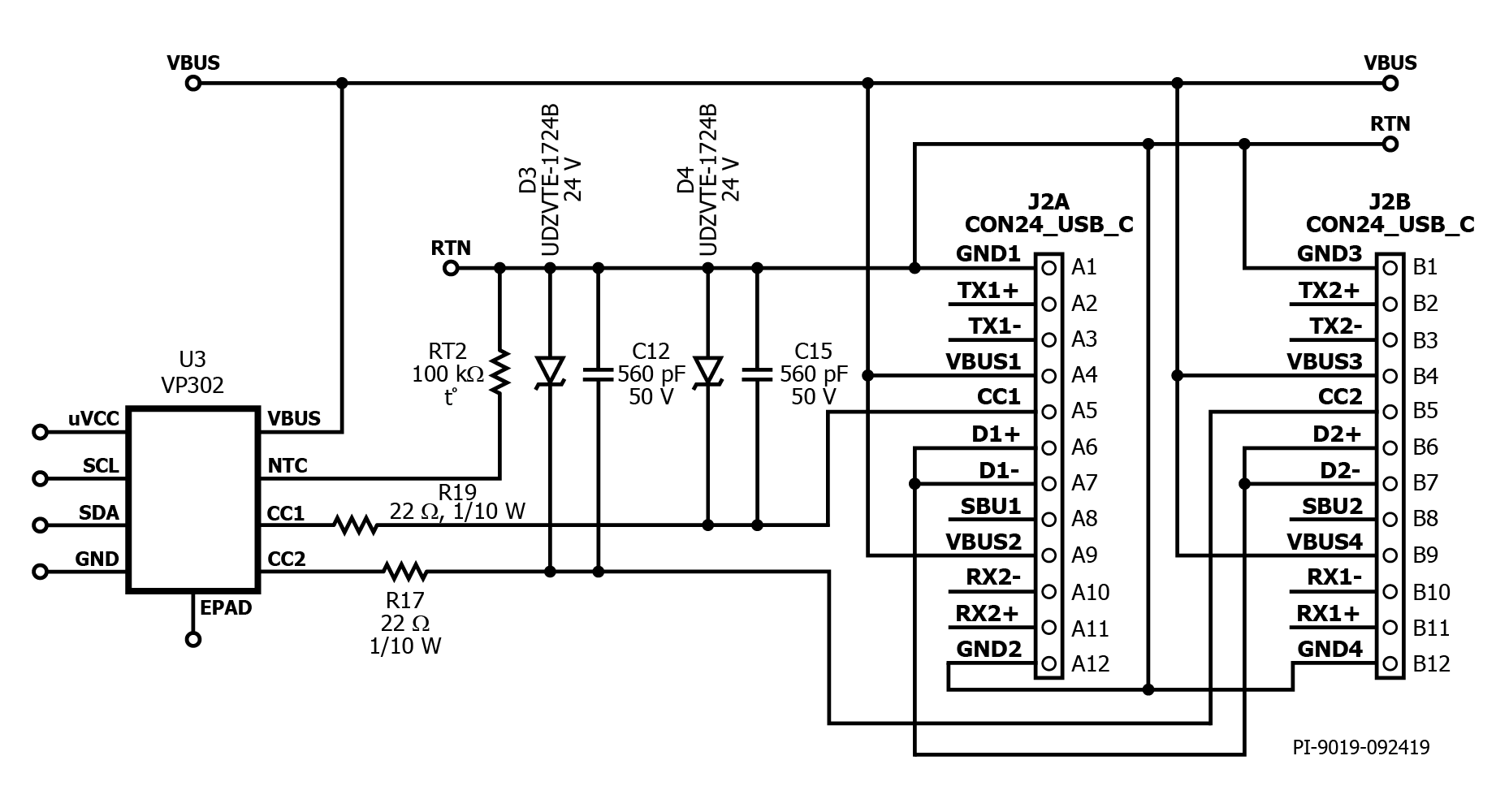

45 W USB PD 3.0 with PPS charger using InnoSwitch3-Pro with PowiGaN (INN3379C-H302) and VIA Labs VP302 USB PD Controller
- Fixed PDO: 5 V/5 A; 9 V/5 A; 15 V/3 A; 20 V/2.25 A
- PPS APDO: 3.3-11 V/5 A (45 W power-limited); 3.3-16 V/3 A; 3.3-21 V/2.25 A
Applications
