DER-850 - 240 W LLC CV/CC Battery Charger Power Supply using HiperLCS and LinkSwitch-TN

Solution Finder Get Tech Support

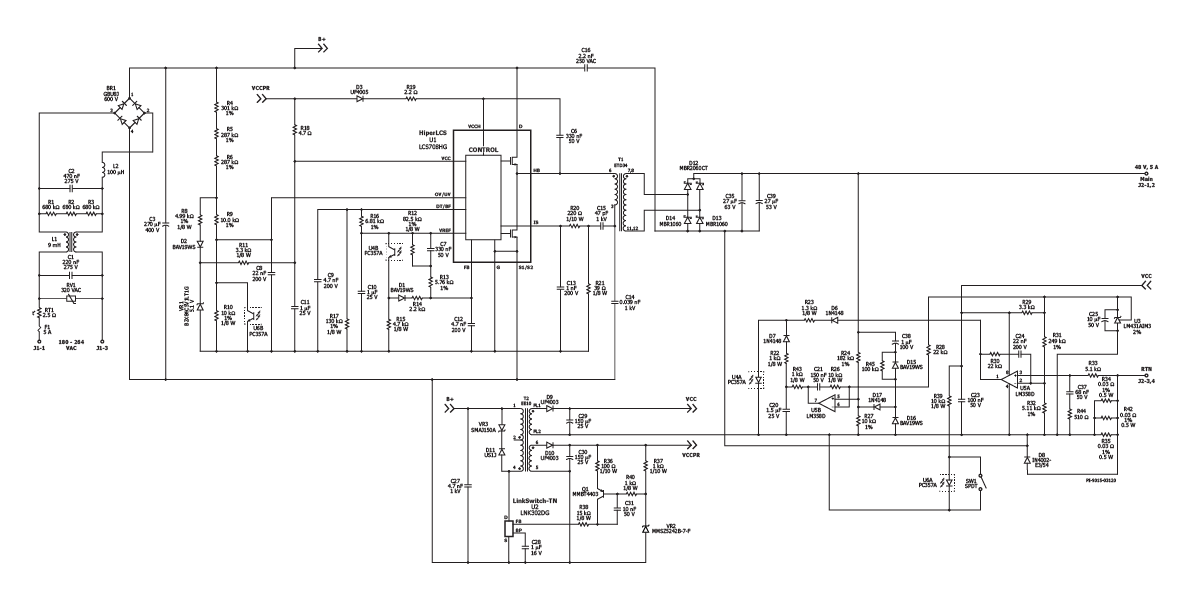

240 W LLC CV/CC power supply for battery chargers (180 VAC – 264 VAC input; 48 V at 5 A output) using HiperLCS (LCS708HG) and LinkSwitch-TN (LNK302D)

Notify Me of Updates

Design Type Design Example Reports (DER)

Topology LLC Half Bridge

Vout 1 48.00 V

Vin (min) 180

Vin (max) 264

CV/CC CV/CC

Efficiency 93.00%

Number of outputs 1

Output Power 240.00 W

PFC? No

Associated Parts LCS708HG, LNK302D
