DER-750 - 42 W 2-Stage Boost and Isolated Flyback Dimmable LED Ballast Using HiperPFS-4 and LYTSwitch-6

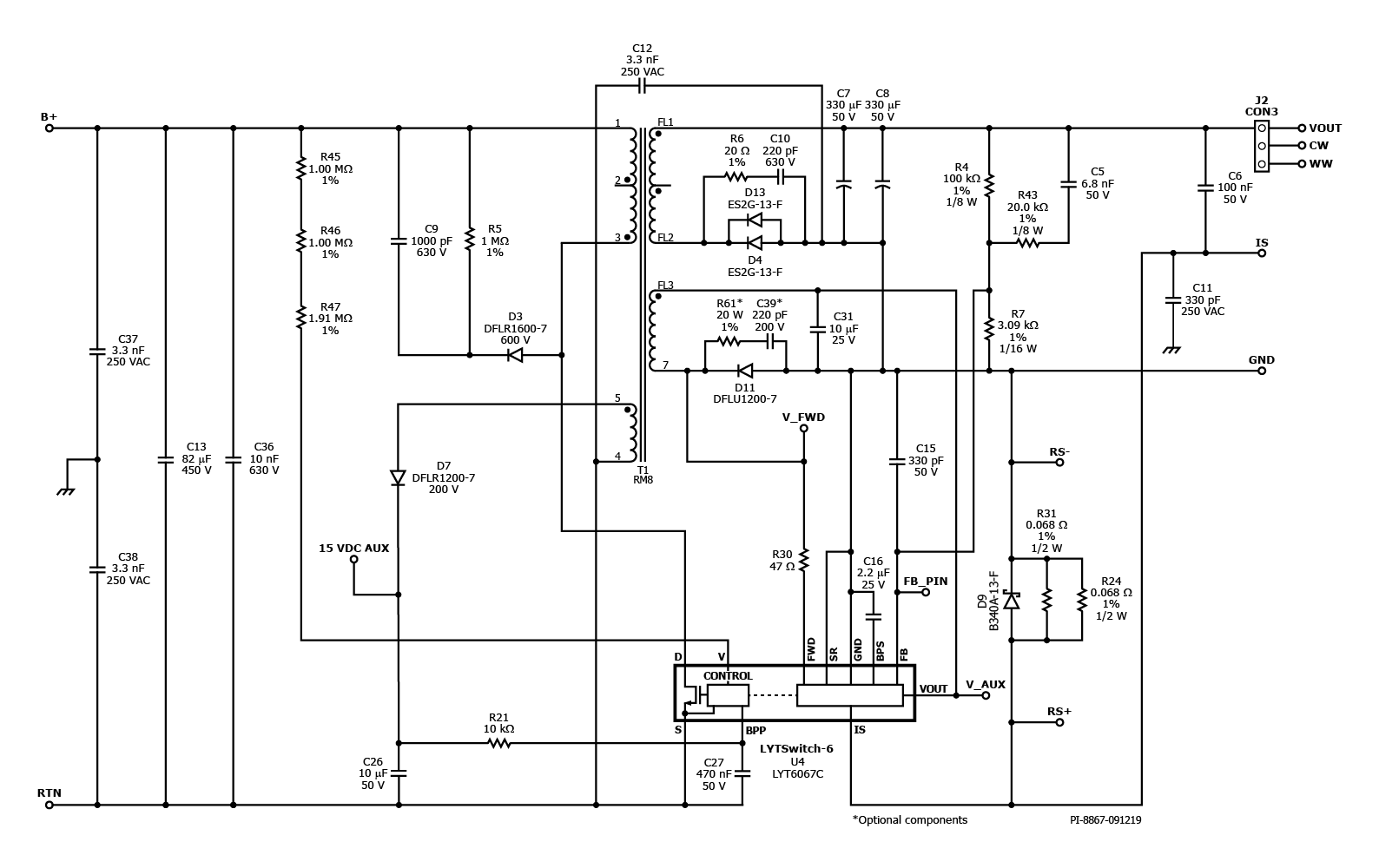

42 W 2-Stage Boost and Isolated Flyback 3-Way + DALI Dimmable LED Ballast Using HiperPFS-4 (PFS7623C) and LYTSwitch-6 (LYT6067C)

View PDF Download PDF

Notify Me of Updates

Applications

Products

Specifications

Design Type Design Example Reports (DER)

Topology Flyback

RoHS? Yes

Vout 1 42.00 V

Vin (min) 90

Vin (max) 277

P (NoLoad) 230.00 mW

CV/CC CV/CC

Efficiency 89.00%

EU ErP Compliant? Yes

Isolated? Yes

Number of outputs 1

Output Power 42.00 W

OVP? Yes

PFC? Yes

Associated Parts PFS7623C, LYT6067C

Gerber File der-750_gerber.zip
