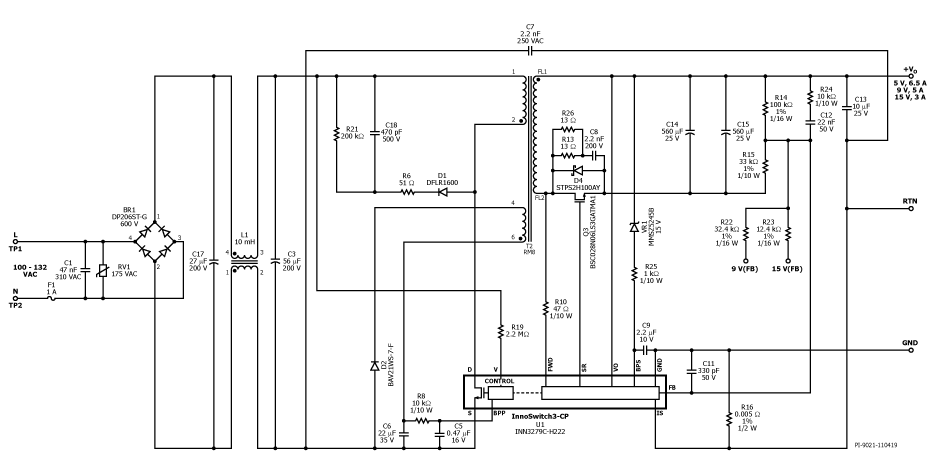

DER-748 - 45 W Selectable Output Voltage USB Power Supply Using InnoSwitch3-CP with PowiGaN Technology (INN3279C-H222)

45 W Selectable Output Voltage (5/9/15 V) USB Power Supply Using InnoSwitch3-CP with PowiGaN Technology (INN3279C-H222)

Design Type Design Example Reports (DER)

Topology Flyback

RoHS? Yes

Vout (variable) 5.00 V

Vout (variable) 9.00 V

Vout (variable) 15.00 V

Vin (min) 100

Vin (max) 135

Variable Power Output Yes

P (NoLoad) 30.00 mW

CV/CC CV/CC

Efficiency 91.00%

EU ErP Compliant? Yes

Isolated? Yes

Number of outputs 1

Output Power 45.00 W

OVP? Yes

PFC? No

Associated Parts INN3279C-H222

Gerber File der-748_gerber.zip
