DER-646 - 9 W, Wide-Range, Isolated Flyback with Switched Valley-Fill, Bluetooth Track Light

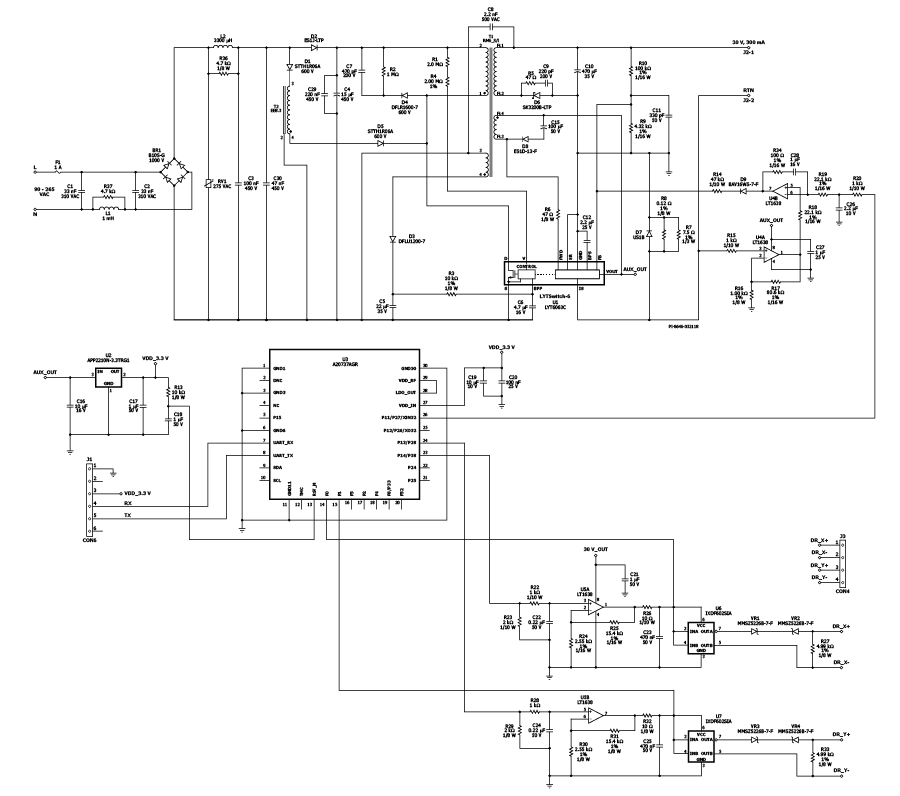

9 W, Wide-Range, Isolated Flyback with Switched Valley-Fill, Bluetooth Track Light using LYTSwitch-6 (LYT6063C) with LensVector Beam Shaping Lens

View PDF Download PDF

Notify Me of Updates

Applications

Products

Specifications

Design Type Design Example Reports (DER)

Topology Flyback

RoHS? Yes

Vout 1 30.00 V

Vin (min) 90

Vin (max) 265

CV/CC CV/CC

Efficiency 84.00%

EU ErP Compliant? Yes

Isolated? Yes

LineComp No

Number of outputs 1

Output Power 9.00 W

OVP? Yes

PFC? No

Associated Parts LYT6063C

Gerber File der-646_gerber.zip
