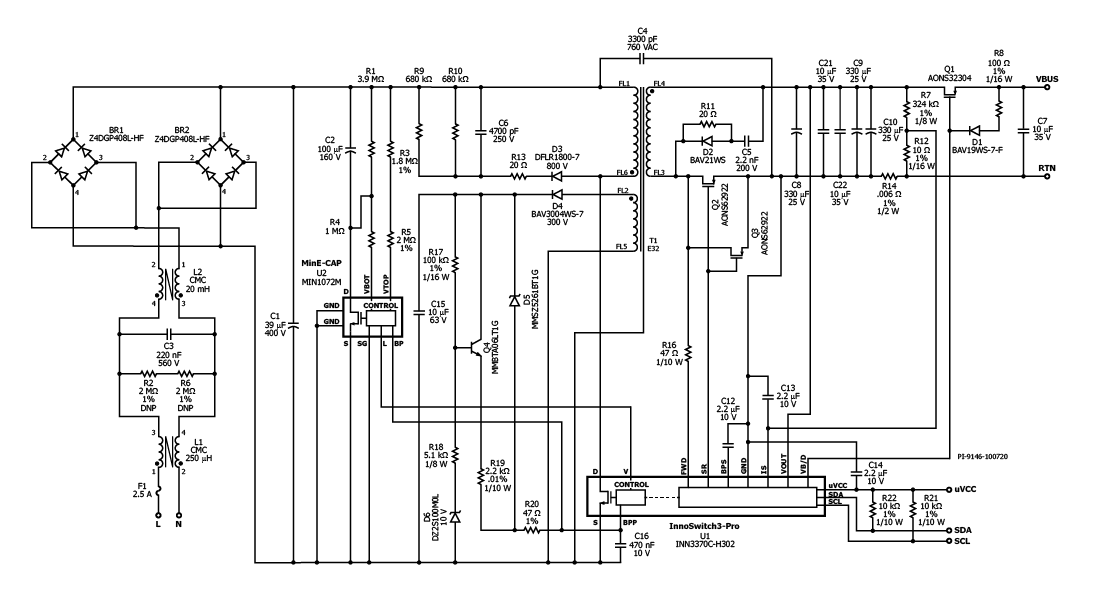

DER-626 - 65 W USB PD 3.0 with 3.3 V-21 V PPS Power Supply Using InnoSwitch3 Pro PowiGaN and MinE-CAP
65 W USB PD 3.0 with PPS charger for mobile phones and laptop computers

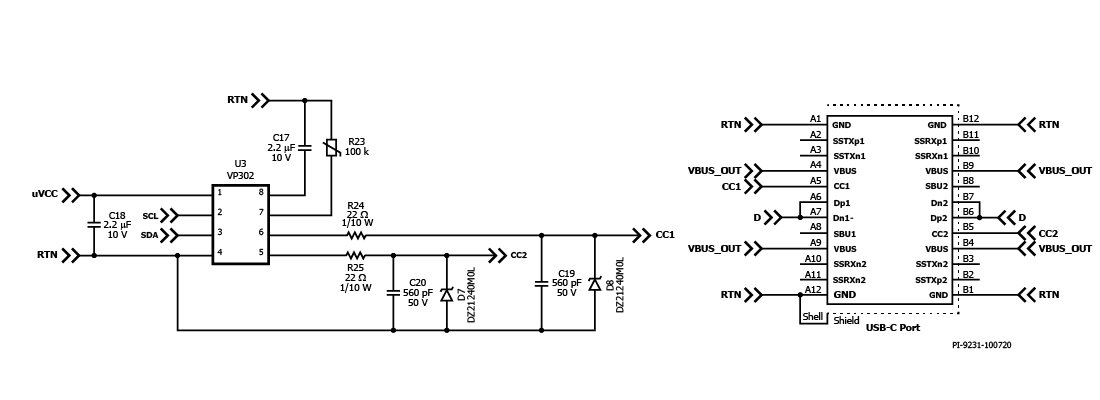

- InnoSwitch3-Pro with PowiGaN (INN3370C-H302)； MinE-CAP (MIN1072M); VIA Labs VP302 controller
- Input: 90 VAC – 265 VAC
- Variable Output: 5 V / 3 A; 9 V / 3 A; 15 V / 3 A; 20 V / 3.25 A
- PPS Output: 3.3 V – 21 V
Applications
