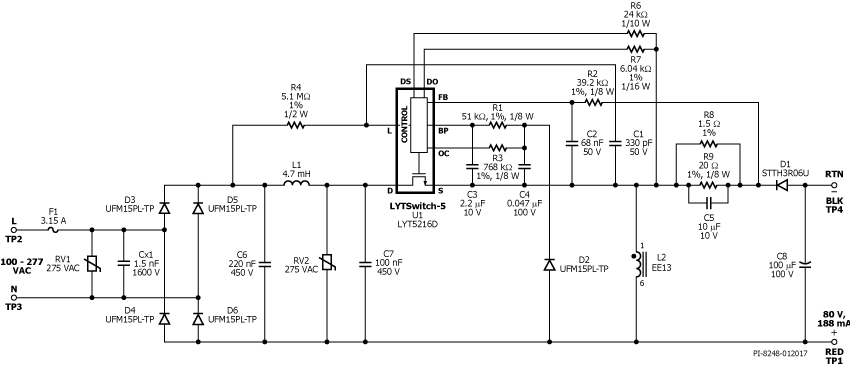

DER-596 - 15 W Universal Input LED Driver for T8 Tube
Applications
Specifications
Design Type
Design Example Reports (DER)
Topology
Buck-Boost
Vout 1
80.00 V
Vin (min)
100
Vin (max)
277
TRIAC dimmable?
No
CV/CC
CC
Efficiency
89.00%
Isolated?
No
Number of outputs
1
Output Power
15.00 W
OVP?
Yes
Associated Parts
LYT5216D
Gerber File
rd596gerber.zip
