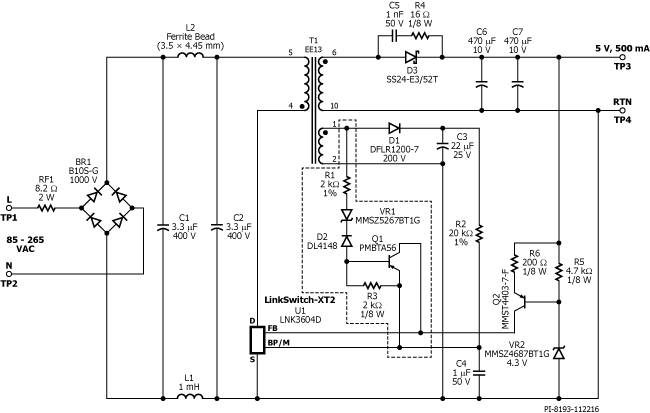

DER-578 - 2.5 W, Universal Input, Non-Isolated Flyback Converter
Applications
Specifications
Design Type
Design Example Reports (DER)
Topology
Flyback
Vout 1
5.00 V
Vin (min)
85
Vin (max)
265
CV/CC
CV
Efficiency
75.00%
Number of outputs
1
Output Power
2.50 W
Associated Parts
LNK3604D
Gerber File
rd578gerber.zip
