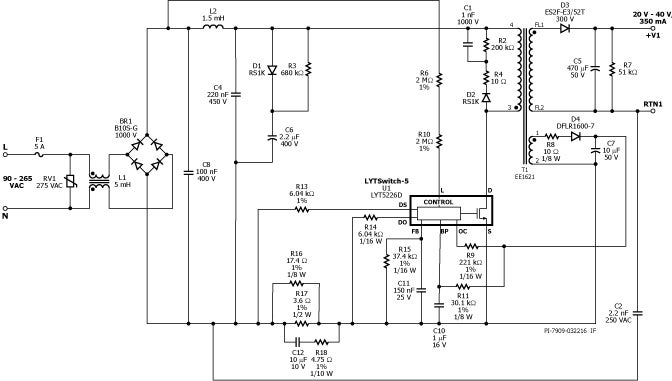

DER-528 - 14 W Non-Dimmable, High Efficiency (>86% ), Power Factor Corrected Isolated LED Driver

Design Type Design Example Reports (DER)

Topology Flyback

RoHS? Yes

Vout 1 30.00 V

Vin (min) 90

Vin (max) 265

TRIAC dimmable? No

CV/CC CC

Efficiency 86.00%

EU ErP Compliant? Yes

Isolated? Yes

Number of outputs 1

Output Power 30.00 W

OVP? Yes

PFC? Yes

Associated Parts LYT5226D

Gerber File rd528gerber.zip
