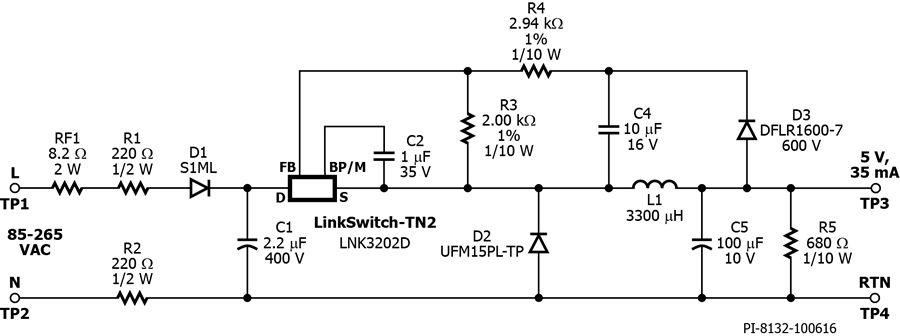

DER-507 - 175 mW Constant Voltage, Universal Input, Non-Isolated Buck Converter
Applications
Specifications
Design Type
Design Example Reports (DER)
Topology
Buck
Vout 1
5.00 V
Vin (min)
85
Vin (max)
265
CV/CC
CV
Isolated?
No
Number of outputs
1
Output Power
175.00 W
Associated Parts
LNK3202D
Gerber File
rd507gerber.zip
