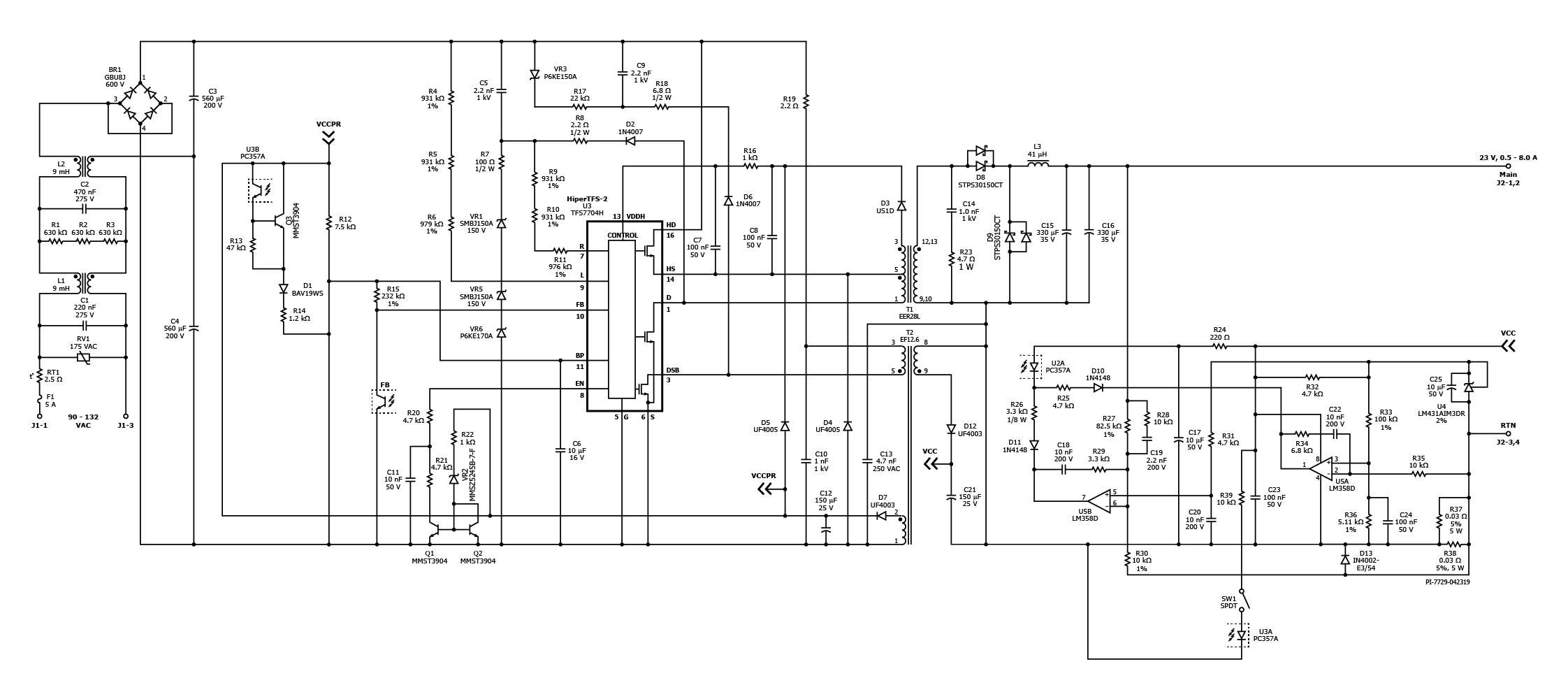

DER-483 - 184 W Non-PFC Stage Forward Power Supply
Applications
Specifications
Design Type
Design Example Reports (DER)
Topology
2-Switch Forward + Flyback
Vout 1
23.00 V
Vin (min)
90
Vin (max)
132
CV/CC
CV/CC
Efficiency
87.00%
Number of outputs
1
Output Power
184.00 W
PFC?
No
Associated Parts
TFS7704H
Gerber File
rd483gerber.zip
