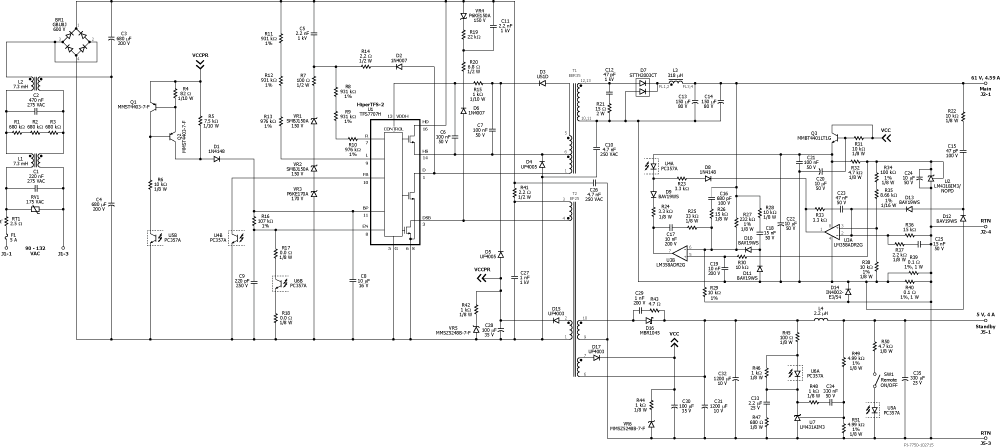

DER-472 - 300 W Non-PFC Stage Forward Power Supply
Applications
Specifications
Design Type
Design Example Reports (DER)
Topology
2-Switch Forward + Flyback
Vout 1
61.00 V
Vout 2
5.00 V
Vin (min)
90
Vin (max)
132
CV/CC
CV/CC
Efficiency
88.00%
Isolated?
No
Number of outputs
2
Output Power
300.00 W
Gerber File
rd472gerber.zip
