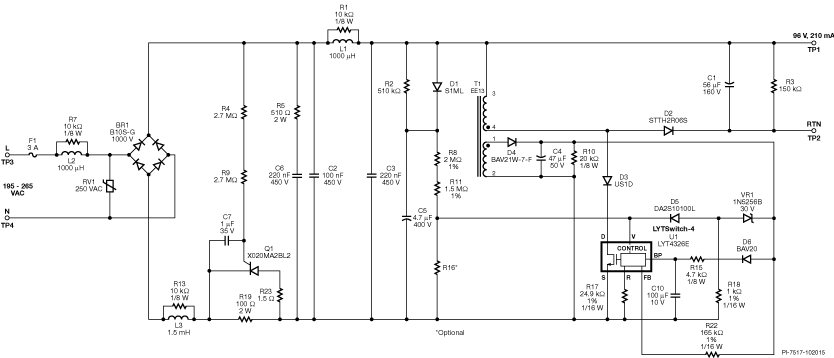

DER-445 - 20 W Power Factor Corrected, Non-Isolated, TRIAC Dimmable LED Driver

View PDF Download PDF

Notify Me of Updates

Applications

Products

Specifications

Design Type Design Example Reports (DER)

Topology Buck-Boost

Vout 1 96.00 V

Vin (min) 195

Vin (max) 265

TRIAC dimmable? Yes

CV/CC CC

Efficiency 85.00%

Isolated? Yes

Number of outputs 1

Output Power 20.00 W

PFC? Yes

Associated Parts LYT4326E

Gerber File rd445gerber.zip
