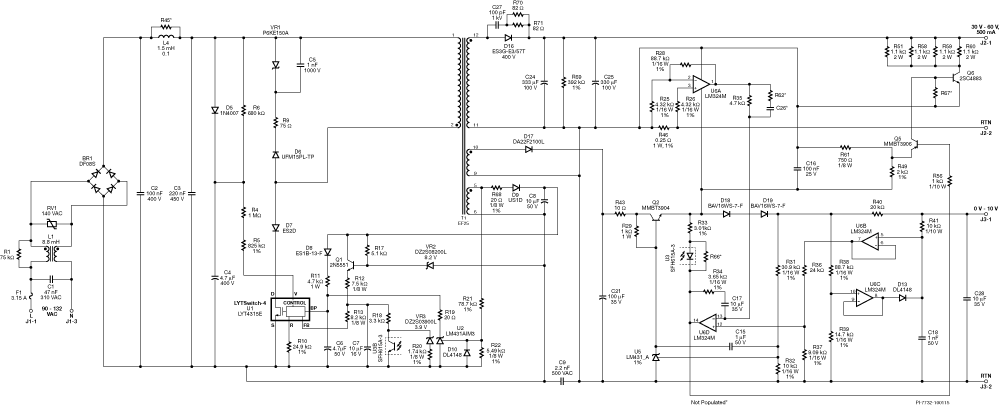

DER-442 - 30 W Isolated Flyback, 1 – 10 V Analog Dimming LED Driver

Design Type Design Example Reports (DER)

Topology Flyback

Vout 1 45.00 V

Vin (min) 90

Vin (max) 132

TRIAC dimmable? Yes

P (NoLoad) 67.00 mW

CV/CC CC

Efficiency 85.00%

Isolated? Yes

Number of outputs 1

Output Power 30.00 W

OVP? Yes

PFC? Yes

Associated Parts LYT4315E

Gerber File rd442gerber.zip
