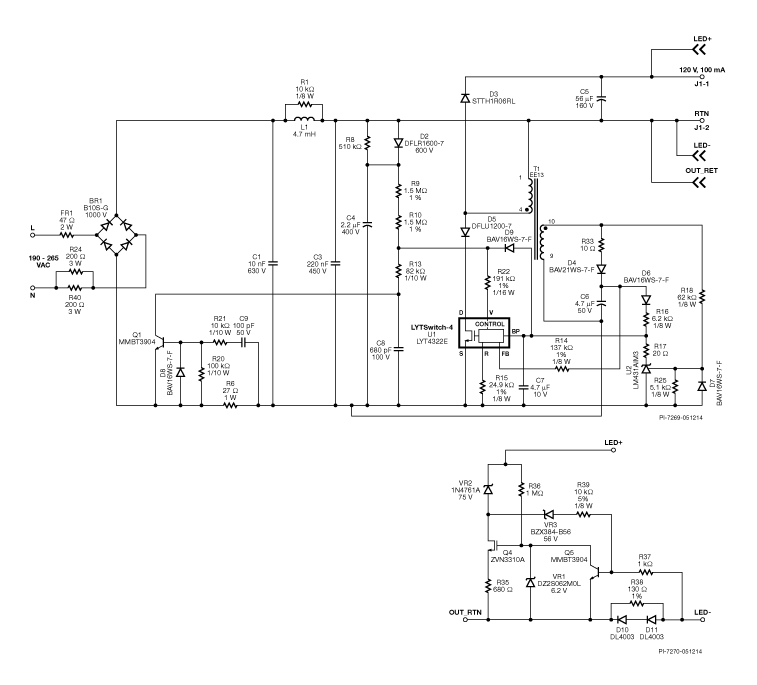

DER-412 - 12 W High PF Non-Isolated Buck- Boost, TRIAC Dimmable LED Driver for A19 Lamps

View PDF Download PDF

Notify Me of Updates

Applications

Products

Specifications

Design Type Design Example Reports (DER)

Topology Buck-Boost

RoHS? Yes

Vout 1 120.00 V

Vin (min) 190

Vin (max) 265

TRIAC dimmable? Yes

CV/CC CC

Efficiency 85.00%

Isolated? No

Number of outputs 1

Output Power 12.00 W

PFC? Yes

Associated Parts LYT4322

Gerber File rd412gerber.zip
