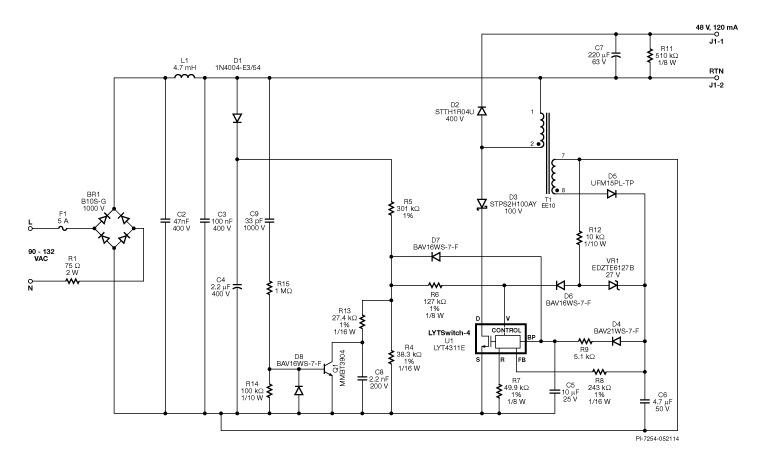

DER-407 - 5.8 W High Power Factor Non-Isolated TRIAC Dimmable LED Driver for A19 Lamps

View PDF Download PDF

Notify Me of Updates

Applications

Products

Specifications

Design Type Design Example Reports (DER)

Topology Buck-Boost

RoHS? Yes

Vout 1 48.00 V

Vin (min) 90

Vin (max) 132

TRIAC dimmable? Yes

CV/CC CC

Efficiency 83.00%

Isolated? No

Number of outputs 1

Output Power 5.80 W

PFC? Yes

Associated Parts LYT4311

Gerber File rd407gerber.zip
