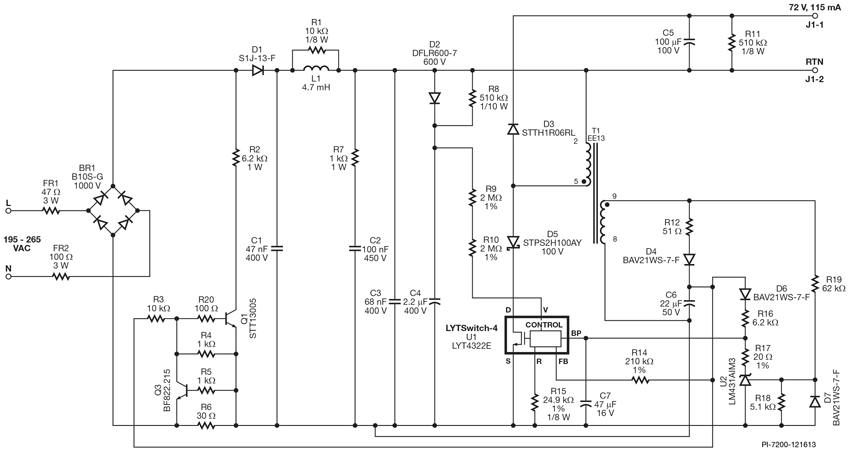

DER-404 - 8 W Dimmable, High Efficiency High PF Non-Isolated for A19 LED Lamp

View PDF Download PDF

Notify Me of Updates

Applications

Products

Specifications

Design Type Design Example Reports (DER)

Topology Buck-Boost

RoHS? Yes

Vout 1 72.00 V

Vin (min) 190

Vin (max) 265

TRIAC dimmable? Yes

CV/CC CC

Efficiency 84.00%

Isolated? No

Number of outputs 1

Output Power 8.00 W

PFC? Yes

Associated Parts LYT4322

Gerber File rd404gerber.zip
