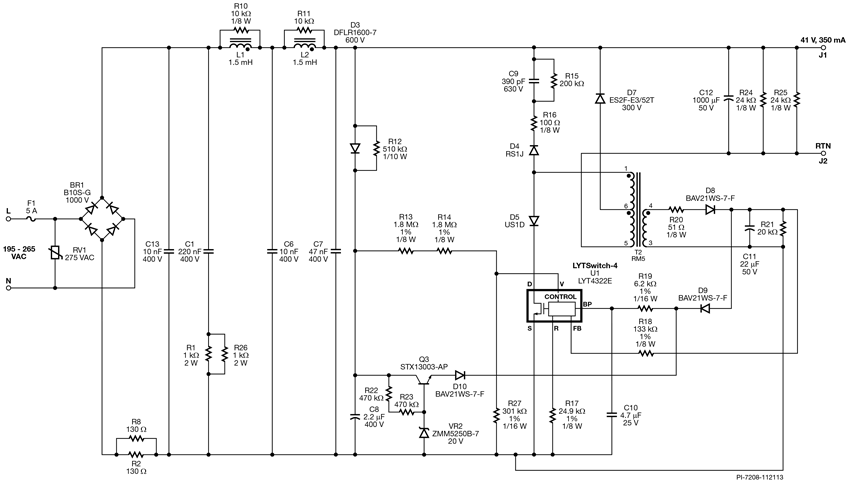

DER-395 - 14.35 W High Efficiency (>86%) High Power Factor (>0.95) TRIAC Dimmable Non-Isolated LED Driver
Applications
Specifications
Design Type
Design Example Reports (DER)
Topology
Tapped Buck
Vout 1
41.00 V
Vin (min)
195
Vin (max)
265
CV/CC
CC
Isolated?
No
Number of outputs
1
Output Power
14.35 W
Associated Parts
LYT4322E
Gerber File
rd395gerber.zip
