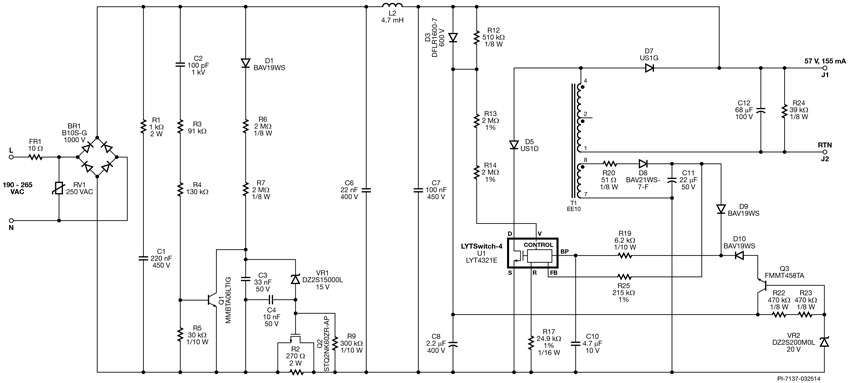

DER-370 - 8.8 W High Efficiency, High PF, TRIAC Dimmable, Non-Isolated for PAR16 LED Lamp

View PDF Download PDF

Notify Me of Updates

Applications

Products

Specifications

Design Type Design Example Reports (DER)

Topology Buck

RoHS? Yes

Vout 1 57.00 V

Vin (min) 190

Vin (max) 265

TRIAC dimmable? Yes

CV/CC CC

Efficiency 86.00%

Isolated? No

Number of outputs 1

Output Power 8.80 W

PFC? Yes

Associated Parts LYT4321

Gerber File rd370gerber.zip
