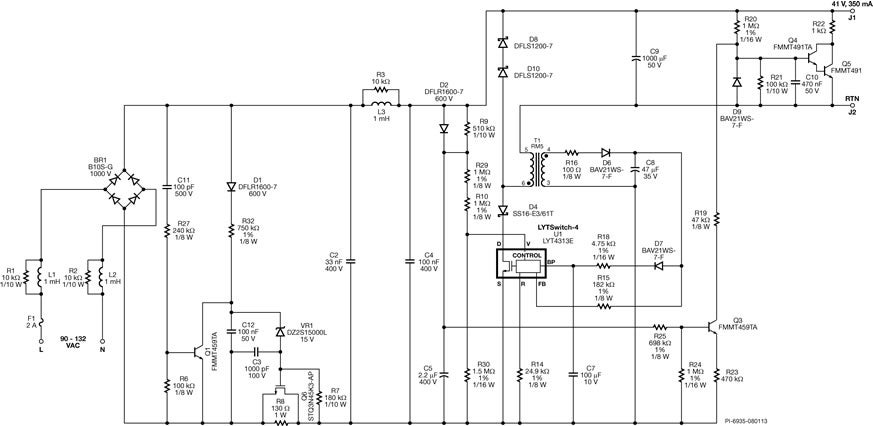

DER-364 - 12 W High Efficiency(>88%), Power Factor Corrected LED Driver for BR40 Lamps

View PDF Download PDF

Notify Me of Updates

Applications

Products

Specifications

Design Type Design Example Reports (DER)

Topology Buck

RoHS? Yes

Vout 1 41.00 V

Vin (min) 90

Vin (max) 132

TRIAC dimmable? Yes

CV/CC CC

Efficiency 86.00%

Isolated? No

Output Power 14.00 W

PFC? Yes

Gerber File rd364gerber.zip
