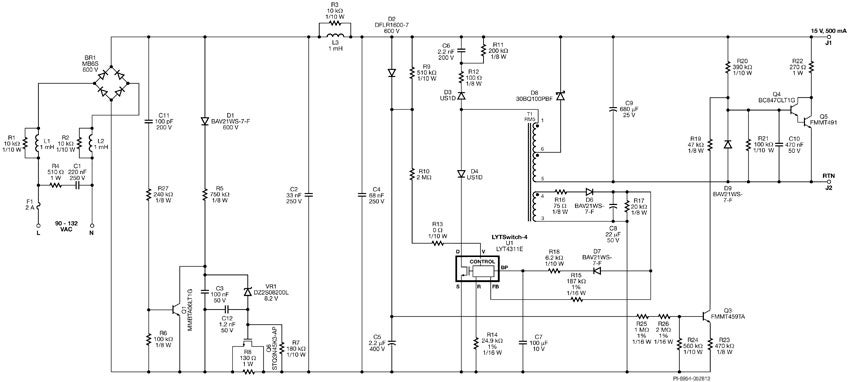

DER-360 - 7.5 W Non-Isolated Tapped-Buck, TRIAC Dimmable LED Driver for PAR20 Lamps

View PDF Download PDF

Notify Me of Updates

Applications

Products

Specifications

Design Type Design Example Reports (DER)

Topology Tapped Buck

RoHS? Yes

Vout 1 15.00 V

Vin (min) 90

Vin (max) 132

TRIAC dimmable? Yes

CV/CC CC

Efficiency 85.00%

Isolated? No

Number of outputs 1

Output Power 7.50 W

PFC? Yes

Associated Parts LYT4311

Gerber File rd360gerber.zip
