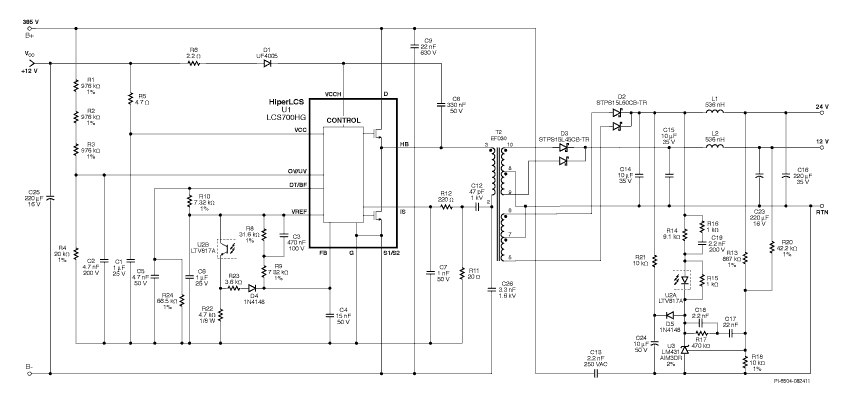

DER-282 - 100 W, Low Profile (11 mm), LLC DC-DC Converter
Applications
Specifications
Design Type
Design Example Reports (DER)
Topology
LLC Half Bridge
RoHS?
Yes
Vout 1
24.00 V
Vout 2
12.00 V
Isolated?
Yes
Number of outputs
2
Output Power
100.00 W
Associated Parts
LCS700HG
Gerber File
rd282gerber.zip
