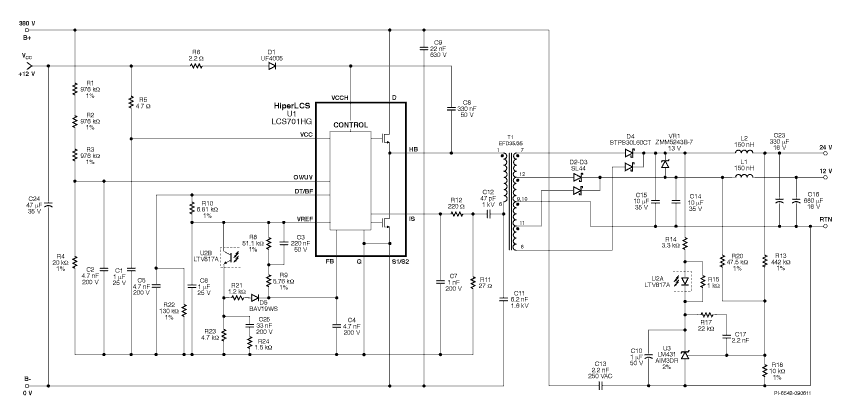

DER-270 - 125 W LLC DC-DC Resonant Converter
Applications
Specifications
Design Type
Design Example Reports (DER)
Topology
LLC Half Bridge
RoHS?
Yes
Vout 1
24.00 V
Vout 2
12.00 V
Isolated?
Yes
Number of outputs
2
Output Power
125.00 W
Associated Parts
LCS701HG
Gerber File
rd270gerber.zip
