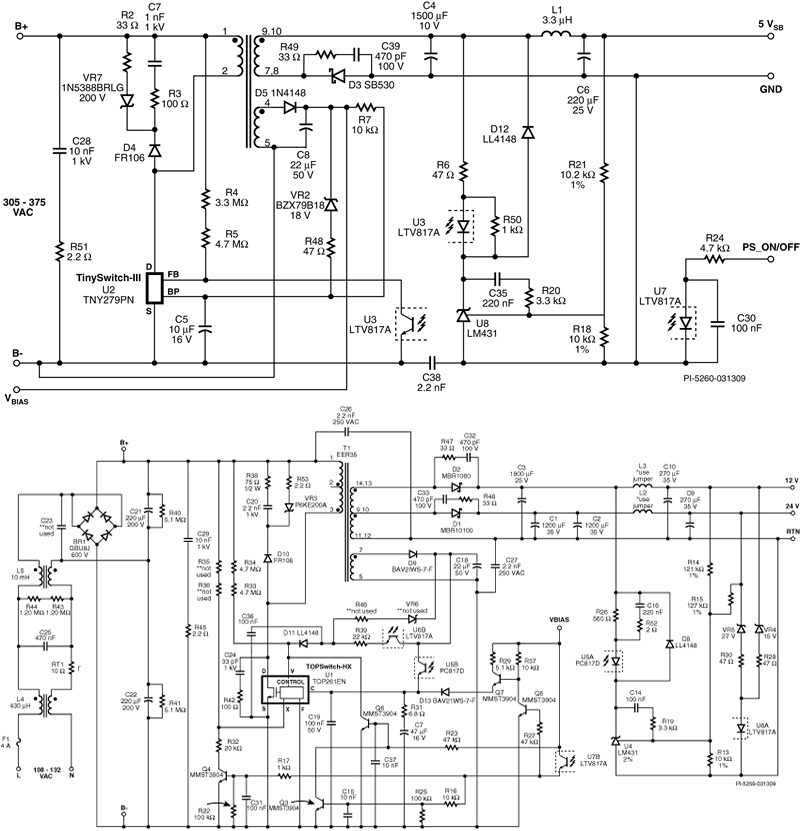

DER-204 - 133 W Combined Main and Standby Supply
Applications
Specifications
Design Type
Design Example Reports (DER)
Topology
Flyback
RoHS?
Yes
Vout 1
24.00 V
Vout 2
12.00 V
Vout 3
5.00 V
Vin (min)
108
Vin (max)
132
Isolated?
Yes
Number of outputs
3
Output Power
133.00 W
Associated Parts
TOP261EN
Gerber File
rd204gerber.zip
